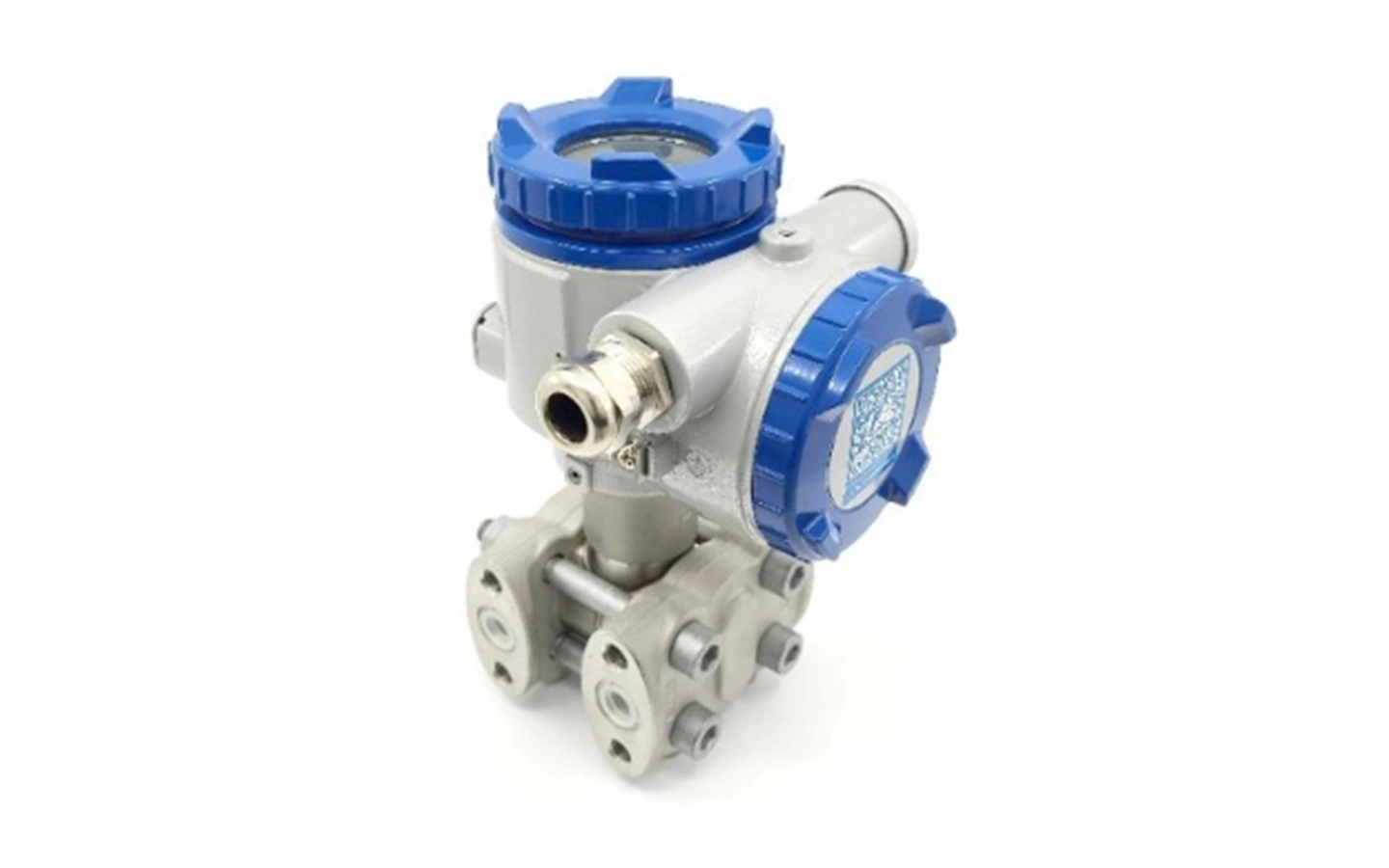

06 Series Pressure Transmitter
Accurately measures absolute and gauge pressure and level in liquids
The EDGE•P 06 Series pressure transmitter accurately measures absolute and gauge pressure and level in liquids and transmits a proportional 4-20 mA output signal. The 06 Series pressure transmitter has an all stainless-steel design, digital electronics and comes with MODBUS communication, RS485, as standard.
TECHNICAL SPECIFICATIONS
- Pressure ranges from 3 kPa up to 15 MPa (0.43511 to 2175.5661 psi)
- Accuracy: ±0.2% of range (option ±0.15%)
- Stability: Better than ±0.1% of URL per year
- Output: 4-20 mA and MODBUS communication (RS485)
- Power supply: 8 to 36 VDC
- Media temperature up to 150°C / 302°F (½” connection 80°C / 176°F) continuously
- 10:1 turndown of URL
APPLICATION FLEXIBIITY
- 17 different process connections
- Lightning protection
- Modbus configuration kit including MEP 7 Modbus PC software, RS485 USB modem, battery supply and connection to low resistance mA meter
