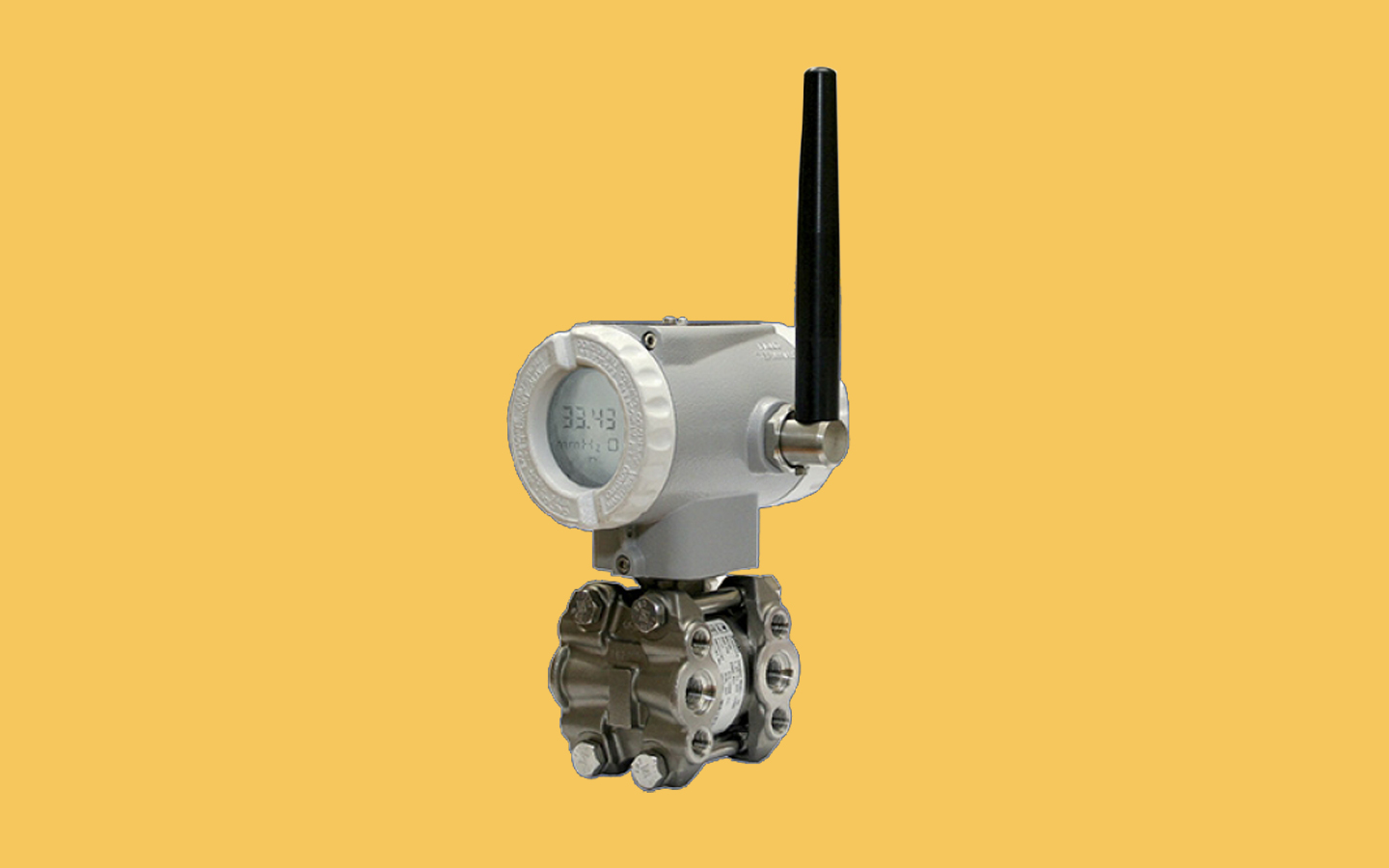

FKP Pressure Transmitter (Direct Mount)
Exceptional performance in accuracy and stability
The FKP pressure transmitter (direct mount) accurately measures pressure and transmits a proportional 4-20 mA output signal. The transmitter uses a unique micro-capacitive silicon sensor in combination with a state-of-the-art digital signal processing to provide exceptional performance in terms of accuracy and stability.
TECHNICAL SPECIFICATIONS
- Pressure ranges from 8.125 kPa up to 10000 kPa (1.1784 to 1450.38 psi)
- Accuracy: ±0.1%
- Stability: ±0.2% of URL for 10 years
- Output: 4-20 mA / HART or Foundation Fieldbus
- Programmable output linearization in up to 14 points
- Burnout current functionality compliant with NAMUR NE43
- Dry calibration without reference pressure
APPLICATION FLEXIBILITY
- Full range of hazardous area approvals
- Built-in RFI filter and lightning arrester
- 5 digits LCD display with engineering units
- Stainless steel electronic housing
- Wide selection of wetted part materials
